AI-Powered Electrical Design — IEC / BS / NF
ElectraFlow Logo

Stop doing
load schedules
by hand

ElectraFlow automates everything — from AI-generated circuit proposals to fully-priced Bills of Quantities — compliant with IEC 60364. Built for serious electrical engineers.

Try for Free See Features →
$1M+ BOQ Generated
100K+ Man-Hours Estimated
IEC 60364 Standard Compliant
< 10 min Full Project Output

Live Demo

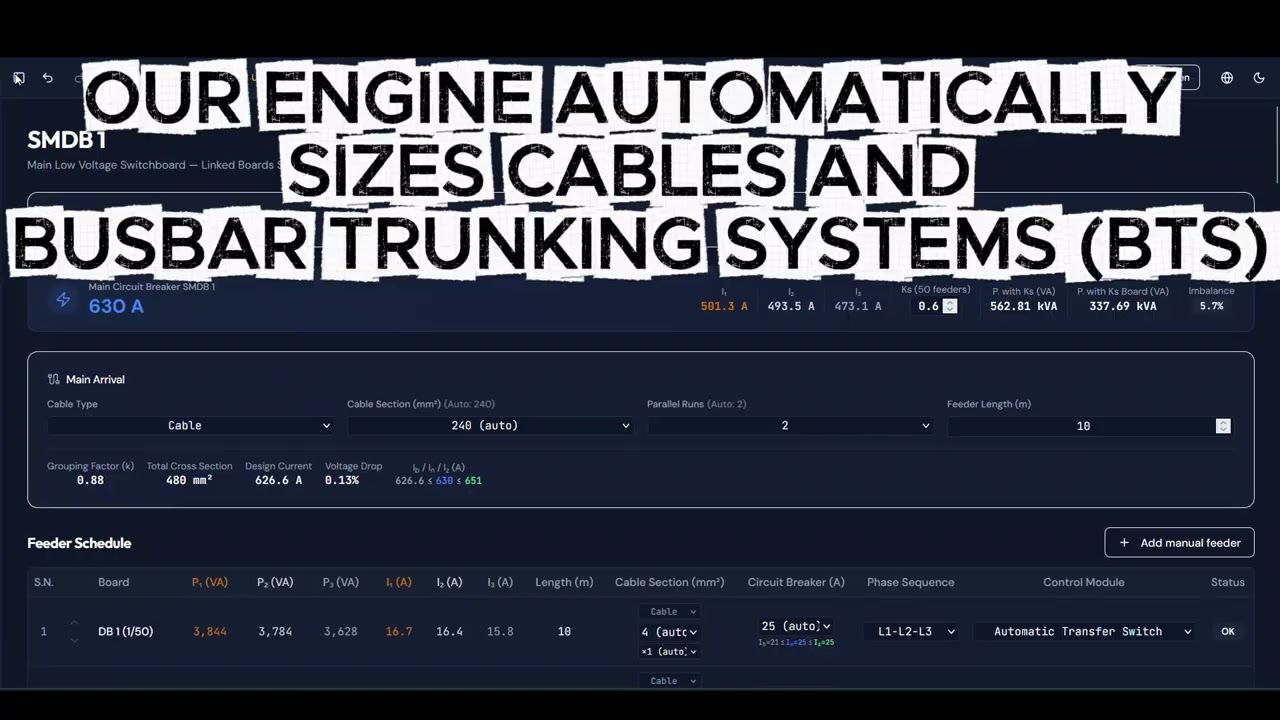

ElectraFlow Demo Video
Watch on YouTube

The Old Way is Broken

Why are engineers
still doing this manually?

⏳

Days of Repetitive Work

Manually building load schedules, sizing cables, and checking phase balance — for every single project, every single time.

❌

Manual Errors Slip Through

A wrong diversity factor, a missed parameter, an unchecked breaker — errors that cause rework, delays, and liability.

📄

BOQ is a Bottleneck

Pricing hundreds of line items across materials, labor, and overhead by hand takes days and is impossible to keep consistent.

Platform Features

Everything an engineer
actually needs

01 / 04

AI Circuit
Generator

Upload a floor plan drawing or simply describe your project requirements. ElectraFlow's AI interprets your input and proposes a complete circuit schedule — rooms, loads, phases, and breaker ratings — aligned to IEC 60364 standards.

IEC 60364 NF C 15-100 Floor Plan Upload Natural Language
electraflow.net/ai-assistant
✓ Verify proposed circuits
Proposed electrical circuits for a 75m² apartment based on IEC 60364 standards, assuming a typical layout for West Africa. The apartment is estimated to include a living room, kitchen, two bedrooms, a bathroom, and a hallway.
✕
⚠ Warnings
  • Room layout and areas are estimated based on a typical 75m² apartment in West Africa, as no specific plan was provided.
  • Phase distribution aims for balance across L1, L2, L3, assuming a three-phase supply is available.
  • Default cable lengths are used as no specific distances were provided in the input.
7/7 selected
Target panel:
DB 1 ▾
Room Load type Power (W) Phase Qty Cable (m) Confidence Source
☑ Living Room Lighting ▾ 150 L1 ▾ 2 6 90% Normative 🗑
☑ Kitchen Lighting ▾ 75 L2 ▾ 1 6 90% Normative 🗑
☑ Living Room Power Sockets ▾ 1200 L1 ▾ 6 8 90% Normative 🗑
☑ Bedroom 1 Air Conditioning ▾ 2500 L2 ▾ 1 20 90% Normative 🗑
☑ Bathroom Water Heater ▾ 2500 L3 ▾ 1 20 90% Normative 🗑
☑ Kitchen Cooker ▾ 7000 L1 ▾ 1 10 90% Normative 🗑
02 / 04

Auto Load
Schedule

Every circuit is automatically sized — current demand, demand factor, apparent power, cable cross-section, circuit breaker rating, and phase assignment. The engine checks phase balance in real-time and flags any violations.

Auto Cable Sizing Phase Balancing Demand Factor Real-time Validation
electraflow.net/panel/51
Room / Load Designation Power (W) Phase Section Status
Living RoomLighting225L11.5 mm²OK
KitchenPower Sockets1,200L22.5 mm²OK
Bedroom 1A/C2,500L34 mm²OK
KitchenCooker4,000L110 mm²OK
BathroomWater Heater2,500L24 mm²OK
03 / 04

Main
Distribution
Boards

Model your full LV network in a structured hierarchy: MDB → SMDB → Distribution Boards. Each board is independently configured and linked. The engine propagates loads upward — Loads calculations, Breakers sizing, Cables sizing and voltage drop — automatically.

MDB / SMDB / DB TGBT Configuration Auto Breaker Sizing Voltage Drop Check
electraflow.net/tgbt/mdb
MDB
Main Low Voltage Switchboard — Linked Boards Summary
⚡
Main Circuit Breaker MDB
1000 A
I₁
767.0 A
I₂
755.1 A
I₃
723.8 A
Ks (2 feeders)
0.9
P. with Ks (VA)
574.07 kVA
Imbalance
5.7%
⬡ Main Arrival
Cable Type
BTS (Busbar Trunking System)
BTS Rating (A) — Auto: 1000A
1000 (auto)
Feeder Length (m)
10
Design Current
958.7 A
Voltage Drop
0%
Iᵦ / Iₙ / Iₛ (A)
958.7 ≤ 1000 ≤ 1000
Feeder Schedule
+ Add manual feeder
S.N.BoardP₁ (VA)I₁ (A)I₂I₃LenSectionBreakerPhase Seq.OK
1 SMDB 1 115,313 501.3 493.5 473.1 10
Cable
240 ×2
630 (auto)
Iᵦ≤Iₙ≤Iₛ ✓
L1-L2-L3 OK
2 SMDB 2 80,719 350.9 345.4 331.2 10
Cable
185 ×2
500 (auto)
Iᵦ≤Iₙ≤Iₛ ✓
L1-L2-L3 OK
Total 196,031 852.2 839.0 804.3
ⓘ Simultaneity Factor (Ks) = 0.9 applied per IEC 60364 for 2 feeders. Cable Section and Breaker columns are editable — status validates sizing automatically.
04 / 04

Full Priced
Bill of
Quantities

Every piece of equipment — breakers, busbars, cabinets, cables — is priced with unit supply cost, unit labor, and OH&P. Man-hours, man-days, workforce count, project duration, and total amounts are all calculated automatically.

Material Costs Labor Rates OH&amp;P Markup Total Amount
electraflow.net/devis
Labor Amount
$62,406
Material Amount
$208,965
Total Amount
$312,080
DesignationQTYUnit SupplyUnit LaborTotal
Main Circuit Breaker 630A 3P+N1$1,448$11.86$1,679
Feeder Breaker 25A 4P150$27.12$5.93$5,701
ATS 25A 4P150$254$11.86$45,902
Internal Busbar 1600A1$1,271$71.19$1,543

Workflow

From requirements
to deliverable in minutes

01

Describe or Upload

Type your project requirements or upload a floor plan drawing. The AI reads it.

02

AI Generates Circuits

Circuits, loads, and phases are proposed automatically and added to your panels.

03

Engine Sizes Everything

Cables, breakers, busbars, and feeders are calculated and validated instantly.

04

Export Full BOQ

Download your complete priced bill of quantities as PDF or Excel — ready to submit.

Compliance

Built on international
engineering standards

ElectraFlow's engine is built on IEC, British, and French standards — exactly as shown in your logo: IEC / BS / NF.

IEC 60364 NF C 15-100 IEC 60947 IEC 60228 IEC 60439 BS 7671 NEMA IEEE 241

Output Formats

Export everything,
your way

📄

PDF Report

A professional, branded report ready to submit to clients and authorities.

Project header with client & location
Financial summary table
Equipment schedules per board
Load schedule with sizing calculations
Feeder cable schedule
📊

Excel Workbook

Multi-tab spreadsheet for detailed review, adjustments, and client collaboration.

Summary tab with KPIs
Load Schedule tab
BOQ tab with full pricing
Panel Equipment tabs
TGBT Feeders tab

Pricing

All features are free
right now

Free Period
Everything included
$0
No subscription required
  • Unlimited projects
  • AI circuit generation
  • Automated load schedules
  • Cable &amp; BTS auto-sizing
  • Full priced BOQ engine
  • PDF & Excel export

Get Started Today

Your next project.
Done in minutes.

Join electrical engineers who've eliminated manual BOQ work and calculation errors from their workflow.

Start Free — No Credit Card Open App →
